Home > Products > CO2 Alloy Steel Extinguishers(SS01-102-120)

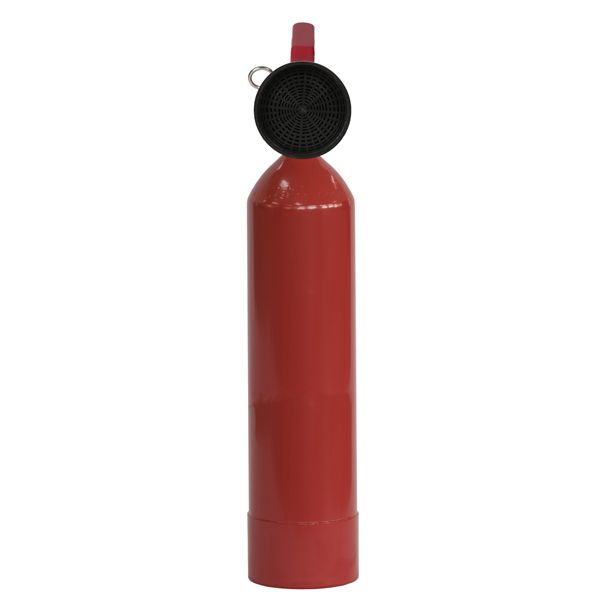

CO2 Alloy Steel Extinguishers(SS01-102-120)

Product Name:CO2 Alloy Steel Extinguishers
Product Code: SS01-102-120
Out-diameter(mm): Φ104
Cylinder high(mm): 480
Cylinder weight(kg): 4.13
Extinguisher weight(kg): 7.29
Volume(L): 3
Filling Weight(kg): 2kg CO2
Temperature range(℃): ﹣20℃~+60℃
Max working pressure(bar): 174
Test pressure(bar): 250
Material: 34CrMo4
Min wall-thickness(mm): 2.29
Fire class: 34B

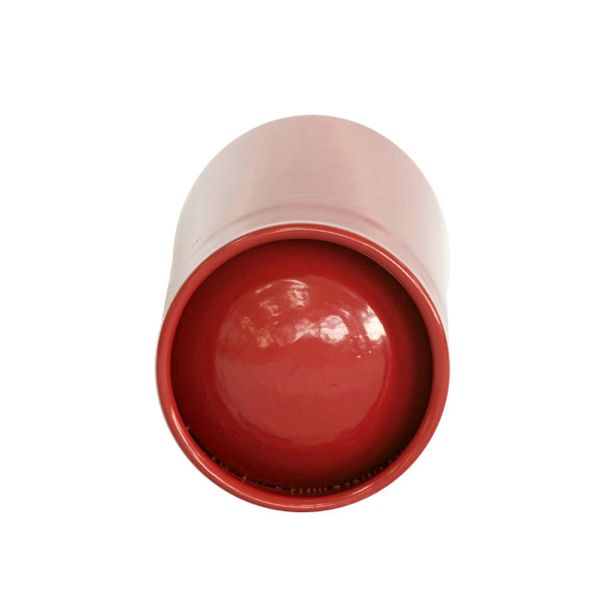

Bottom of cylinder: convex, welding on the steel ring

Details

CO2 Alloy Steel Extinguishers are normally used for Fire Class B and Fire Class E.

The range of our CO2 alloy steel extinguishers are from filling 1.3kg CO2 to 6kg CO2.

The related volume is from 2L to 9L with different filling rate 0.667 or 0.75.

The cylinder material is 34CrMo4.

The cylinder body is lighter than carbon steel cylinder.

The cylinder bottom could be concave or convex.

The cylinder and valve have obtained CE certificate.

The cylinder surface is with good polyester painting RAL3000.

Engineers from the German TUV Bureau Shanghai branch monitor the production procedures of the CO2 CE certified alloy steel cylinders.

We assure the safety of users with excellent quality products.

We could provide OEM service to meet customer’s special requirements.
